Product Details:
Payment & Shipping Terms:
|
| Material: | SIC | SIC: | 98% |
|---|---|---|---|
| Color: | Black | Moisture: | 0.5 Max |
| Ture Density: | 3.9 G / Cm 3 | Hardness(mohs): | 9.15 |
| The Shape: | Polygon | Mircohardness: | 2840-3320g/mm2 |
| High Light: | silicon carbide abrasive powder,silicon carbide nanopowder |
||

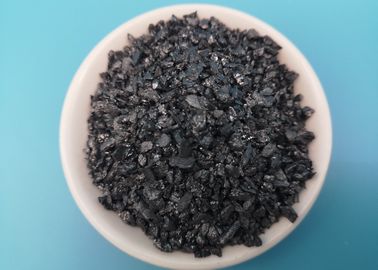

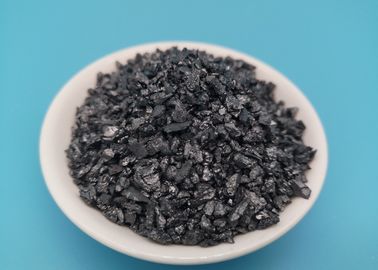

Black silicon carbide
Physical And Chemical Properties
| C | Size | SIC(%) | Free C(%) | Fe2O3(%) | Moisture |
| C85 | 8-5/5-3/3-1/1-0mm | 85.0 min | 6.0 max | 3.0 max | 0.5 max |
| -200F | 85.0 min | 6.0 max | 4.0 max | 0.5 max | |
| -325F | 85.0 min | 6.0 max | 4.0 max | 0.5 max | |
| C90 | 8-5/5-3/3-1/1-0mm | 90.0 min | 3.0 max | 2.0 max | 0.5 max |
| -200F | 90.0 min | 3.0 max | 3.0 max | 0.5 max | |
| -325F | 90.0 min | 3.0 max | 3.0 max | 0.5 max | |
| C95 | 8-5/5-3/3-1/1-0mm | 95.0 min | 1.0 max | 1.4 max | 0.5 max |
| -200F | 95.0 min | 1.0 max | 1.4 max | 0.5 max | |
| -325F | 95.0 min | 1.0 max | 1.4 max | 0.5 max | |
| C97 | 8-5/5-3/3-1/1-0mm | 97.0 min | 0.6 max | 0.7 max | 0.5 max |
| -200F | 97.0 min | 0.6 max | 0.7 max | 0.5 max | |
| -325F | 97.0 min | 0.6 max | 0.7 max | 0.5 max | |
| C98 | 8-5/5-3/3-1/1-0mm | 98.0 min | 0.3 max | 0.4 max | 0.5 max |
| -200F | 97.5 min | 0.3 max | 0.6 max | 0.5 max | |
| -325F | 97.5 min | 0.3 max | 0.7 max | 0.5 max |
Product Description
silicon carbide is produced at high temperature in an electric resistance type furnace with quarts sand and petroleum coke as its main raw materials. Its hardness is between fused alumina and synathetic diamond. Mechanical intensity of it is hig-her than fused alumina.it is brittle and sharp and has electrical and heat conductivity in some degree.
Properties of Sic is extreme hardness, high temperature resisting, chemical erosion resisting, radiation resisting and good electric conductivity and thermal conductivity, low thermal expansion, it’s Moh’s hardness is 9-9.5.
Silicon carbon is a new kind of reinforced steel-making deoxidizing agent and ideal thermal insulating agent.it is used for deoxidizing. The usage dose is 1-4kg/t can make electricity consumption to reduce 15-20kw/h and time to reduce 15-20min per furnace to raise productivity rate to 8-10%.
Application of silicon carbide recycle:
1. Used to grind cast iron, rubber, non-ferrous metals, leather, plastic, ceramic, wood, rock, etc.
2. Widely used to manufacture high-grade refractory products and metallurgical deoxidizer.
3. Suitable for surface grinding, lapping or polishing.
1).Silicon Carbide is widely used in the fields of Abrasive, Grinding, Metallurgy, Refractory,Ceramics, Petroleum,Chemical,Microelectronics,Automobile and Aerospace and so on.
2).Silicon carbon can be used as metallurgical deoxidizer and high temperature resistant materials in smelting.
3). It can also be used as abrasive materials,which can be used to make abrasive tools,such as grinding wheels, oilstones, grinding head and so on.
The main field of application:
1). Nonferrous metal Smelting industry.
2). Steel line using
3). Energy-saving line
4). Lining of high furnace to improve furnace age.
5). Stemming,downspouting and all kinds refractory brick of high furnace.
6). Iining of Electric tank of Electrolytic Aluminium or total tank body made by sic.
7). Silicon carbide ceramics is made by high quality sic fine powder,firing several wearproof,acid- resisting and high temperature resistance parts.
